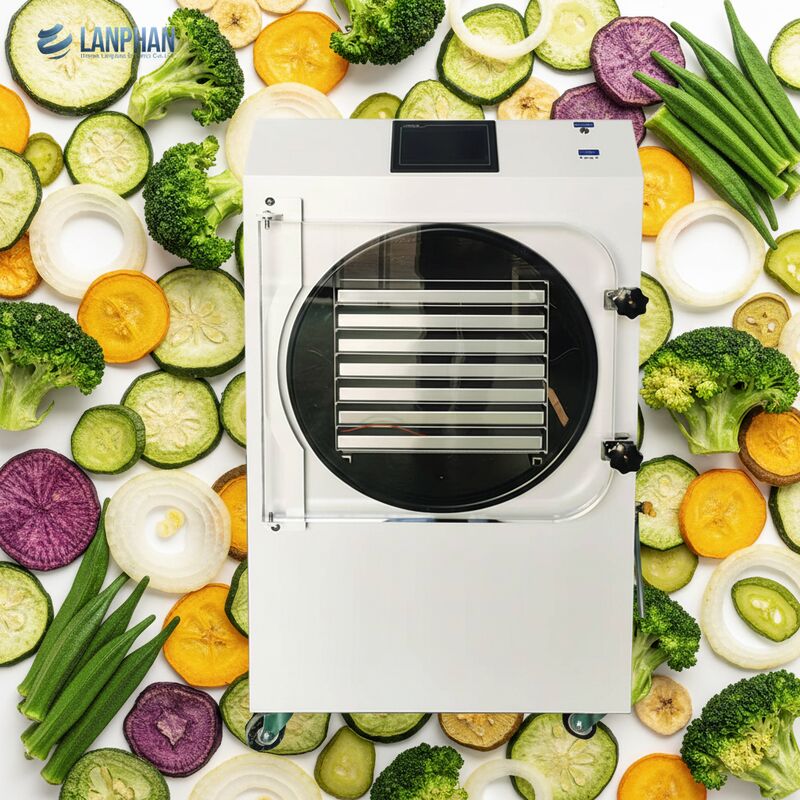

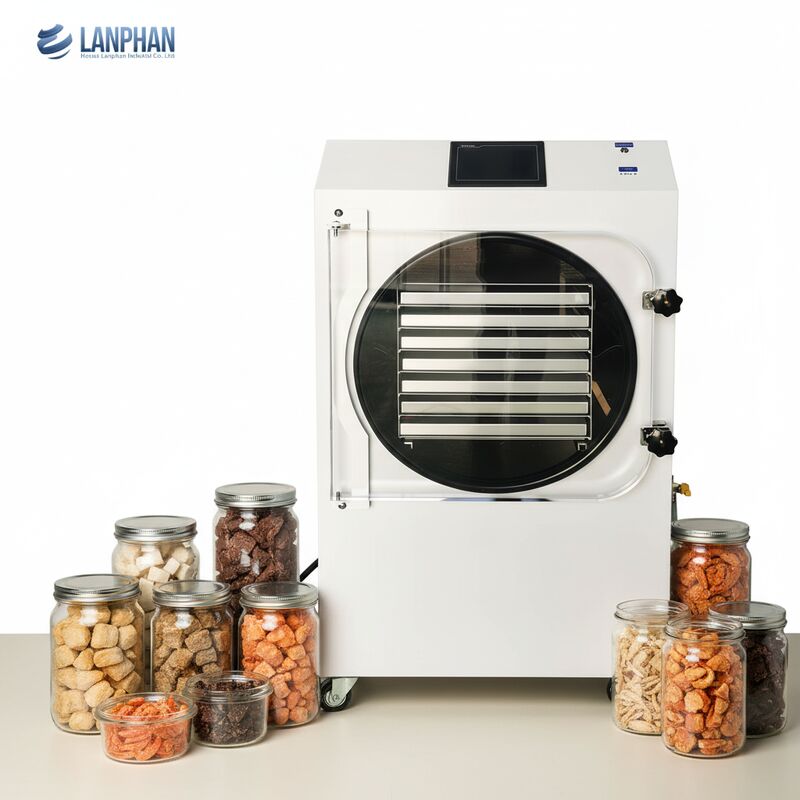

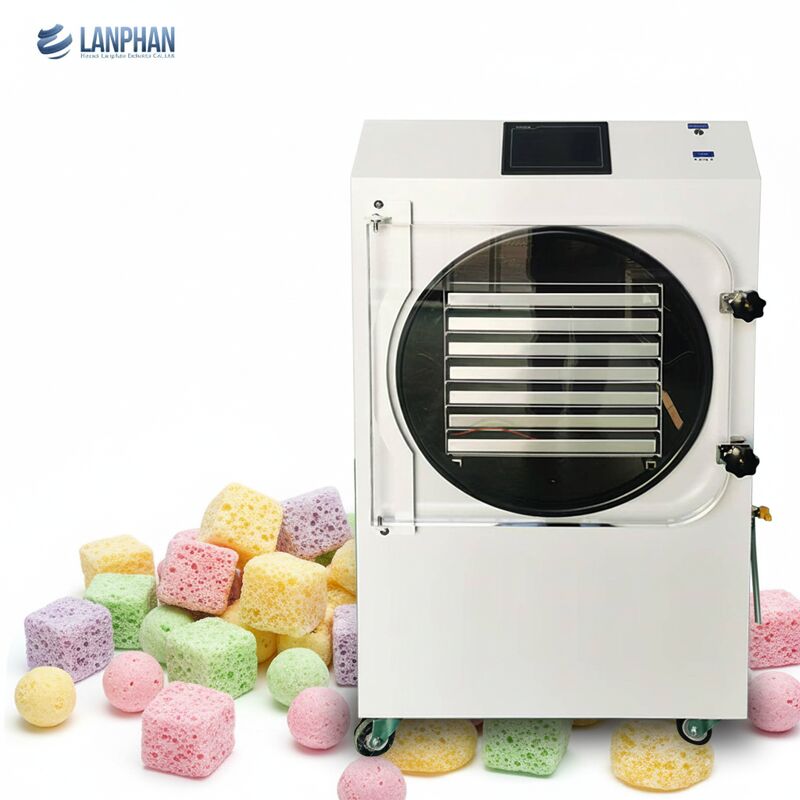

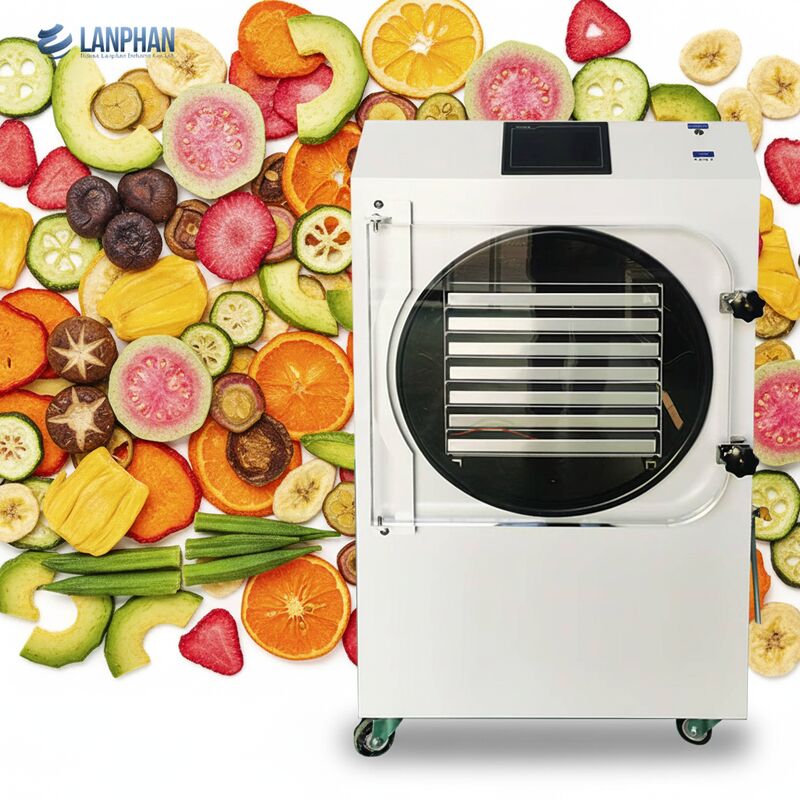

Name: High Vacuum Performance 50-55 KG Capacity HFD-35 Vacuum Drying Equipment
Brand: Henan Lanphan Industry Co.,Ltd
SKU: HFD-35
Price: 8999 USD
Availability: InStock

Σπίτι > προϊόντα > Κενός στεγνωτήρας παγώματος >

High Vacuum Performance 50-55 KG Capacity HFD-35 Vacuum Drying Equipment

High vacuum performance freeze dryer

50-55 KG capacity vacuum drying equipment

HFD-35 vacuum freeze dryer

Τόπος καταγωγής:

Henan, Κίνα

Μάρκα:

Lanphan

Πιστοποίηση:

Αριθμό μοντέλου:

HFD-35

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Πληροφορίες για το προϊόν

Τύπος:

Εξοπλισμός ξήρανσης υπό κενό

Συνολική ισχύς:

5,5 KW

Δυναμικό:

220V/50Hz (110V/380V)

Θερμοκρασία ψυχρής παγίδας:

-70℃

Ικανότητα:

50-55 kg/παρτίδα

Μέγεθος δίσκου υλικού:

400*600*30mm (14 δίσκοι)

Εγγύηση:

12 μηνών

Παρέχεται εξυπηρέτηση μετά την πώληση:

Ηλεκτρονική Υπηρεσία

βάρος:

322 κιλά

Εφαρμογή:

Φρούτα, λαχανικά, υγρά...

Επισημαίνω:

High vacuum performance freeze dryer

50-55 KG capacity vacuum drying equipment

HFD-35 vacuum freeze dryer

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 μονάδα

Τιμή

$8999/unit

Συσκευασία λεπτομέρειες

Ξύλινη συσκευασία κουτιού

Χρόνος παράδοσης

10-30 εργάσιμες ημέρες

Όροι πληρωμής

L/c, t/t, paypal, alipay ...

Δυνατότητα προσφοράς

50 μονάδες το μήνα

Συγγενικά προϊόντα

Βίντεο

High Efficiency 3.5 M2 Stainless Steel 14 Trays HFD-35 Food Freeze Dryer

Βρείτε την καλύτερη τιμή

Βίντεο

High Vacuum Performance 50-55 KG Capacity HFD-35 Vacuum Drying Equipment

Βρείτε την καλύτερη τιμή

Βίντεο

HFD-35 -70℃ Ultra Low Temperature 5500w Industrial Freeze Drying Machine For Food Fruit Vegetable

Βρείτε την καλύτερη τιμή

Βίντεο

HFD-35 Commercial Freeze Dryer 3.5sqm 35-40 KG/Batch14 Trays Large Scale Lyophilizer

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

+8613783661974

yang@lanphan.com

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

3.5 M2 Shelf Area & 35-40 KG Large Batch Capacity HFD-35 Vacuum Freeze Dryer

Vacuum Drying Equipment Parameter

High Vacuum Performance 50-55 KG Capacity HFD-35 Vacuum Drying Equipment 0

Model	HFD-35
Tray space	3.5m2
Cold trap temperature	-70ºC
Number of trays	14pcs
Processing capacity	50-55 kg/batch
Material tray size	40060030mm
Power supply	220V/50HZ can be customized 110V or 380V
Layer Spacing	45mm
Overall power	5500W

Vacuum Drying Equipment Application

High Vacuum Performance 50-55 KG Capacity HFD-35 Vacuum Drying Equipment 1

Vacuum Drying Equipment Advantages

The 7-layer freeze dryer machine with 14 trays provides sufficient freeze-drying space.

Each layer has a temperature probe to ensure that each layer and each tray can be in a precise temperature environment

Dual compressors

1. Lower condensing temperature: Lower condensing temperature can be achieved, which can be as low as-70 ℃.

2. Stronger refrigeration capacity: two compressors work together, more refrigeration power, faster refrigeration.

3. Higher system stability: Each compressor in the dual compressor system has an independent control system and protection device.

4. More accurate temperature control.

High Vacuum Performance 50-55 KG Capacity HFD-35 Vacuum Drying Equipment 2

Dual-Chamber Design: Isolated Drying & Condensing Systems

The HFD-35 features a sophisticated separate-chamber architecture, physically isolating the drying chamber from the water trap (ice condenser) for superior processing results.

Zero Cross-Contamination: By isolating the water trap, this design prevents moisture, ice crystals, or potential impurities from back-flowing into the drying chamber. This ensures the maximum purity and uncompromised quality of your sensitive materials.
Optimized Drying Efficiency: Both the drying chamber and the water trap are equipped with independent temperature control and dedicated vacuum management. This allows for granular, autonomous regulation of each zone, significantly accelerating the sublimation process and reducing total cycle time.
Industrial-Grade Precision: The decoupled system ensures that the extreme cold of the ice condenser does not interfere with the precise heating required on the product shelves, leading to a more stable and repeatable freeze-drying curve.

Vacuum Drying Equipment Details

High Vacuum Performance 50-55 KG Capacity HFD-35 Vacuum Drying Equipment 4

Vacuum Drying Equipment Factory Attend Exhibitions
